Best v-Block Drilling Aids for Drill Presses for Precise Centering
When drilling round stock or tubing, keeping parts perfectly centered is essential for accurate results. This article highlights top V-block and center-drilling fixtures that pair well with drill presses. Each product listing covers compatibility, build quality, and practical use cases to help you pick tools that improve alignment, reduce drift, and speed up fabrication workflows. The selections below are selected for versatility across metal, wood, and composite projects, offering durable construction and reliable center support.
| Product | Brand | Key Benefit |
|---|---|---|
| Center-It Drill Press Block | Speedway Motors | Fast, universal centering for round tubing |
| The Original V-DrillGuide | Big Gator Tools | Multiple drill sizes with durable construction |
| Eastwood Drill Press V Block Fixture | Eastwood | Centering for bar stock and tubing, versatile saw support |
| Milescraft 1312 Drill Block | Milescraft | Small jig with common imperial drill guides |
| AD INTERNATIONAL SGI V Block Jig Fixture | AD INTERNATIONAL | 2″ capacity, solid iron, precise center drilling |
Choosing a V-block or drill guide involves assessing capacity (diameter range), material durability, ease of mounting, and how well the fixture integrates with your drill press setup. The following sections review five highly relevant options currently available on Amazon, focusing on how each tool enhances centering accuracy and workflow efficiency.
Center-It Drill Press Block: Universal Centering For Round Tubing
The Center-It Drill Press Block by Speedway Motors focuses on efficient centering for round tubing. Its design aims to minimize setup changes when switching between different tube sizes, helping machinists keep consistent hole placement. The compact 5″ x 4″ base with a 1.75″ height allows convenient placement and straightforward handling within compact fabrication benches. This tool emphasizes a universal centering approach, reducing adjustment time and improving overall drilling accuracy for round stock operations.
The Original V-DrillGuide: Standard Drill Guide Set
The V-DrillGuide STD1000DGNP from Big Gator Tools provides 17 drill sizes from 1/8″ to 3/8″ in 1/64″ increments. It’s suitable for flat surfaces, round parts, and corners, making it a flexible choice for multi-surface drilling projects. The tool uses a nickel alloyed steel construction that’s heat-treated for durability, supporting repeated drilling with consistent alignment. It’s well-suited for workshop setups that require precise, repeatable center drilling across various shapes.
Eastwood Drill Press V Block Fixture: Center-It Tube Drilling
Eastwood’s Center-It V Block Fixture is a practical option for drilling through the center of bar stock and round tubing. It can help hold tubes in place during sawing and drilling tasks, contributing to improved accuracy and steadier cuts. The fixture’s compact profile makes it compatible with most standard drill press tables, enabling easier alignment for round workpieces and cylindrical stock.
Milescraft 1312 Drill Block: Handheld Drilling Guide
Milescraft introduces a handheld drilling guide with six common imperial sizes: 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, and 1/2″. The hardened steel guides offer precise alignment for vertical or horizontal drilling. Built-in vertical and horizontal centerlines support accurate positioning, while non-slip feet keep the DrillBlock from slipping or marring the work surface. This makes it a portable option for quick-field centering tasks.

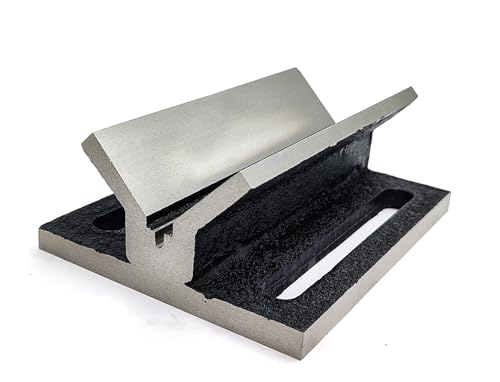

AD INTERNATIONAL SGI V Block Jig Fixture: 2″ Capacity
The SGI V Block Jig Fixture is designed to hold round workpieces up to 2″ in diameter with a solid iron build. It features precision-machined surfaces for long-lasting accuracy and is compact enough for easy handling and storage. The 5″ x 4″ footprint aligns with standard drill press tables, enabling stable center drilling across a range of cylindrical materials including metal, wood, and plastic.
SplashNColor V Block Jig Fixture: 2.5″ Capacity
The SplashNColor V Block Jig Fixture supports about 2.5″ capacity and is described as ideal for precision filing, milling, or drilling. It emphasizes durability and reliability with ABS construction, focusing on maintaining accuracy during repetitive tasks. This fixture is positioned as a versatile option for projects that require careful handling of round parts during milling or drilling operations.
Woodriver Drill Press Table V-Block
The WoodRiver V-Block is designed to bolt onto the WoodRiver Drill Press Table and features a 4-9/16″ long by 3″ wide footprint with a 2-1/2″ deep “V.” It supports secure clamping for center drilling on larger workpieces and provides a stable option for aligning round parts prior to drilling. The mounting compatibility makes it a practical upgrade for drill press setups that use WoodRiver table accessories.
Drill Guide For Straight Holes: STD1000DGNP
The STD1000DGNP hand-held drill guide offers 17 SAE sizes from 1/8″ to 3/8″ in 1/64″ increments. Built from heat-treated nickel alloy steel, it emphasizes durability and rust resistance. The V-groove base supports stability on flat, round, and square surfaces, making it adaptable for various materials including wood, plastic, and metal. This tool is designed to bring drill-press-like precision to handheld drilling projects and portable setups.
Buying Guide: Key Purchase Considerations
- Capacity and compatibility: Match the V-block or drill guide’s diameter range to your common stock sizes. Consider whether you need to drill through round tubing, bar stock, or flat stock, and check the fixture’s mounting compatibility with your drill press table.
- Material and durability: Iron and nickel-alloy steel constructions offer higher rigidity and longevity. ABS-based blocks may provide cost-effective versatility but may not match metal fixtures in heavy-duty use.
- Stability and slip resistance: Look for non-slip feet, clamps, or grooves that secure the workpiece. A stable base improves concentric accuracy and reduces drill wander.
- Portability vs. specialization: Handheld guides improve field work and small projects, while larger fixtures provide greater rigidity for heavy drilling tasks. Choose based on your typical project scale and workspace size.
- Ease of use and setup: Features like built-in centerlines, quick-change chucks, and clear measurement markings help minimize setup time and reduce operator error.
- Material compatibility: For metalworking, verified steel or iron fixtures perform best with consistent center drilling. For woodworking or plastic work, ensure the fixture’s tolerances align with your material behavior.
Overall, selecting a V-block or drill guide depends on your typical workpieces, required precision, and the drill press configuration you use. The highlighted products offer a spectrum of capacities, from small hand-held guides to sturdy fixed fixtures, enabling tighter tolerances and more repeatable results across various projects.
