Best Drift Pins for Flanges: Top Picks for Precision Alignment
Drift pins are essential tools for aligning flanges, pins, and holes in heavy equipment, piping, and steel assemblies. The right drift pin offers strong steel, precise tapering, and comfortable handling to ensure clean, repeatable alignment without marring surfaces. Below is a curated set of drift pins and related pin tools designed to handle flange work across professional shops and job sites. The selections emphasize durability, consistent tapers, and practical lengths for confined spaces.
| Product | Brand | Key Benefit |
|---|---|---|
| Klein Tools 3261 Barrel-Type Drift Pin, 13/16-Inch | KLEIN TOOLS | Uniform tapers, solid end-pin finish |
| Klein Tools 3260 Barrel-Type Drift Pin, 11/16-Inch | KLEIN TOOLS | Quality alloy steel, blends into body diameter |
| Flange Wizard 42050-TM Two Hole Pins | Flange Wizard | Two-hole alignment for flange work |
| Bon Tool 27-223 Drift Pin, 1-5/16 inch | Bon | Forged steel, balanced taper both ends |
| Bon 27-220 Drift Pin, 15/16 inch | Bon | Rust-resistant and heat-treated for strength |
Note: This introduction provides a snapshot of tools designed for flange alignment and drift pin work. Each product described below includes practical features, construction quality, and real-world applicability to flange and hole alignment tasks.
Klein Tools 3261 Barrel-Type Drift Pin (13/16-Inch)
The Klein Tools 3261 drift pin is machined from quality alloy steel, delivering a robust tool for flange alignment tasks. The pin features uniform tapered ends that blend smoothly into the body diameter, reducing the risk of catching or galling during insertion. This design supports precise end-pein performance and helps operators maintain alignment when locating holes in flanges or structural components. The pin’s sturdy construction is suited for repeated use in workshop and field environments, offering a reliable choice for mechanical and piping installations.
Key considerations:
- Material: Alloy steel for strength and longevity.
- Taper: Uniform to minimize interference with hole walls.
- End-pein capability: Maintains tip integrity under impact.
Klein Tools 3260 Barrel-Type Drift Pin (11/16-Inch)
The 3260 drift pin from Klein Tools shares the same alloy steel construction and uniform tapering as the higher-size model. Its tapered design blends with the body diameter to reduce binding and ensure smooth entry into aligned holes. The tool’s forged steel composition provides durability for repeated impact and use in demanding flange work. A practical choice when working with smaller or intermediate flange holes, where precise alignment is critical for bolt and gasket seating.
Key considerations:
- Size options to fit a range of flange hole patterns.
- Forged steel construction for impact resistance.
- Consistent taper for clean hole entry.
Flange Wizard 42050-TM Two Hole Pins
The Flange Wizard 42050-TM set features two-hole pins meant for flange alignment tasks. With a compact design, these pins facilitate quick and accurate hole alignment in flange assemblies, even in tight spaces. The pins are described as lightweight with practical weight and origin in the United States, making them a reliable option for standard flange work. While not a single heavy-duty pin, they fill a niche for two-hole alignment where speed and ease are important.
Key considerations:
- Two-hole design for specific flange configurations.
- U.S. origin and lightweight construction for easy handling.
- Solid brand reputation in flange tooling.
Bon Tool 27-223 Drift Pin (1-5/16-Inch)
The Bon 27-223 drift pin offers a longer 11-inch length with a 1-5/16-inch diameter and a 1-1/4-inch hole diameter tolerance. It is manufactured from tough forged steel with uniform taper from both ends, and it is designed to resist rust and hold strength after heat treating. This makes it suitable for extended use in heavy-duty flange and structural alignment tasks where longer pins provide reach and leverage in crowded work areas. The balanced taper helps maintain control while guiding holes into alignment.
Key considerations:
- Long reach for restricted spaces.
- Rust-resistant and heat-treated for strength.
- Uniform taper from both ends for versatile use.

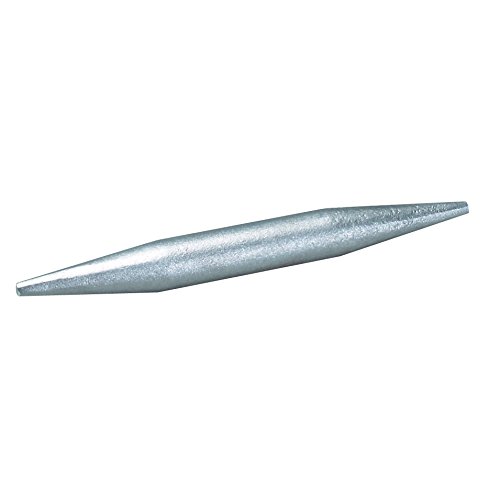

Bon 27-220 Drift Pin (15/16-Inch)
The Bon 27-220 drift pin presents a compact option at 15/16 inch with an 7/8-inch hole diameter. Like other Bon pins, it offers forged steel construction with uniform tapering from both ends and durable heat treatment for long-term use. This size is well-suited for smaller flange holes or where a lighter pin is needed to avoid overstressing the workpiece materials during alignment in piping or steel assemblies. The rust-resistant finish contributes to consistent performance in workshop environments.
Key considerations:
- Medium-length option for various flange configurations.
- Dual-end tapering supports flexible use.
- Rust resistance and heat-treated strength.
URREA Drift Punch Set (7-Piece)
The Urrea 7-piece drift punch set provides a broader range of tip sizes from 3/32″ to 3/4″, designed for alignment and punch work that complements flange operations. The set comes with extra-long tapered pins and a drop-forged construction, packaged in a tool roll for storage. This collection is beneficial when multiple hole sizes are encountered on a project, enabling on-site adjustments without swapping individual pins constantly. The included components are built to withstand professional use in metalworking and structural alignment tasks.
Key considerations:
- Range of tip sizes for varied hole configurations.
- Drop-forged construction for durability.
- Storage roll included for organization.
4 Pcs Flange Two Hole Pins Set (Stainless Steel)
This stainless steel set includes two-hole alignment pins in two diameters: 1-1/8” and 1-5/8”. The pins are designed to work with bolts and holes across a range of flange thicknesses up to about 3 inches. Their ergonomic design and corrosion-resistant stainless steel offer durability in humid or outdoor environments. The pin set is clearly described for quick, simple installation and reliability in repetitive flange alignment tasks.
Key considerations:
- Stainless steel for corrosion resistance.
- Two-hole configuration suitable for standard flange patterns.
- Ergonomic design for ease of use in awkward workplaces.
Buying Guide: Key Purchase Considerations
When selecting drift pins and flange alignment tools, consider the following factors to match performance with project requirements:
- Material and hardening: Look for alloy or medium-carbon steel with heat treatment to withstand impact and repeated use. Rust resistance is important in damp or outdoor environments.
- Length and diameter: Choose pins that align with flange hole patterns and provide enough reach without overlengths that hinder maneuverability in tight spaces.
- Taper quality: Uniform tapering reduces snagging and helps maintain alignment during insertion.
- End condition: Pins that can end-pein or hold up under hammer or mallet impact are better for persistent use in industrial settings.
- Two-hole or multi-hole configurations: Some flange work benefits from pins designed for specific hole patterns; consider kits that cover your common flange sizes.
- Brand and warranty: Reputable brands offer consistent tolerances and, in some cases, warranties that protect against manufacturing defects.
- Portability and storage: Sets with organized tool rolls or compact cases reduce loss and improve workflow on job sites.
In practice, the best drift pins for flange work combine durable materials, consistent tapers, and ergonomic handling. For projects requiring multiple hole sizes, a diversified kit—such as a mix of long pins, two-hole pins, and a compact stainless set—can provide flexibility and reduce tool changes during a session. When choosing, balance cost against durability and the typical environments where you work to ensure reliable performance over time.
