Best Chain Clamp for Dial Indicator: Top Shaft Alignment Kits and Accessories
Finding the right chain clamp setup for dial indicators simplifies shaft alignment and precision measurements in motors, pumps, and machines. The following curated selections emphasize reliability, ease of use, and compatibility with common dovetail and post configurations. Each entry includes a quick feature summary to help compare options at a glance.
| Product | Brand | Key Features |
|---|---|---|
| Starrett Shaft Alignment Chain Clamp Set with Case | Starrett | Chain clamp with multiple posts; precision movement; dovetail positioning mounts |
| Starrett Shaft Alignment Clamp Set with Chain Clamp | Starrett | Multiple posts, extension plates, snug pieces; fast setup |
| Starrett Shaft Alignment Clamp Set with Chain Clamp | Starrett | Chain clamp, posts, case; durable anodized and stainless components |
| 1 Pack Dial Indicator Clamp Chuck Professional Dovetail Clamp | ZWxqysp | Rotatable dovetail, 8/6/4 mm sizes; robust tungsten steel |
| SUXING Dial Test Indicator Stems with Knurled Clamp Ring | suxing | Ø8 mm dovetail-grooved stem; versatile positioning |
Starrett Shaft Alignment Chain Clamp Set With Case
This Starrett kit uses a precision chain clamp system to align shafts quickly. It includes an indicator, snug, extension plates, and posts in 5″, 7-7/16″, and 9″ lengths. The design emphasizes smooth jeweled movement and a high-contrast dial, aiding readability for inch and metric scales. The case helps protect accessories and keeps components organized for field or shop use.
Features cited include a variety of dovetail mounts for compatibility with existing accessories and a gear-driven, smooth operation. This makes it a strong choice where quick alignment and repeatable measurements are needed across different shaft diameters and mounting configurations.
Starrett Shaft Alignment Clamp Set (With Chain Clamp)
This Starrett set equips users with dual chain clamps and multiple posts for robust shaft alignment. It is designed for quick setup and reliable accuracy in radial and angular alignment tasks. The included rigid stainless steel indicator posts and a black anodized aluminum frame contribute to durability in demanding environments.
With 3/8″ diameter posts (5″, 7-7/16″, 9″), the kit accommodates a range of shaft sizes. The overall assembly is intended to simplify alignment workflows for motors, pumps, and compressors while delivering consistent, repeatable results.
Starrett Shaft Alignment Clamp Set With Chain Clamp
This Starrett option combines chain clamp hardware, extension plates, and 5″, 7-7/16″, and 9″ posts. It emphasizes precision alignment for motors, pumps, and compressors, with durable aluminum components and stainless steel indicators to withstand heavy use. It supports accurate angular and radial alignment across a variety of setups.
1 Pack Dial Indicator Clamp Chuck Professional Dovetail Clamp
This clamp chuck from ZWxqysp focuses on versatile dovetail clamping with tungsten steel construction for durability. It offers rotatable positioning for precise dial placement and supports multiple sizes (8 mm, 6 mm, 4 mm) to fit a range of dial indicators or indicator holders. The design prioritizes secure grip and repeatable alignment in tight spaces.

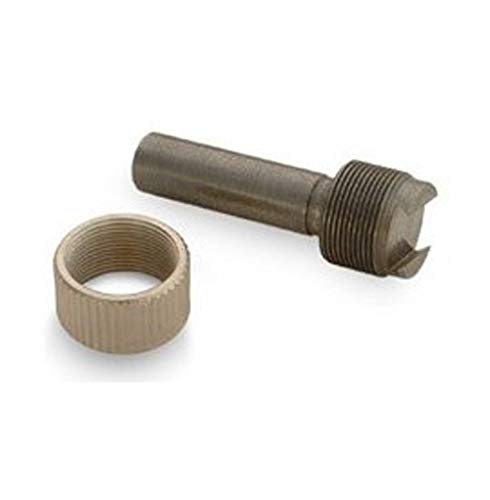

SUXING Dial Test Indicator Stems With Knurled Clamp Ring
These stems are designed with a knurled clamp ring and an ø8 mm dovetail-grooved stem, suitable for Mitutoyo indicators and similar models. The flexible stem and ring allow for easy positioning in tight or awkward spaces, enhancing setup speed and measurement consistency. A compact solution when a simple, adjustable stem is needed for dial indicators in alignment tasks.
Suxing Sleeve Swivel Clamp Chuck For Magnetic Stands
Designed for magnetic stands, this sleeve swivel clamp chuck facilitates quick and stable clamping for dial indicators. It features a lever clip and fixed bracket clip to secure accessories and pipes, making it a versatile option for magnetic gauge setups. The swivel function aids in achieving precise angles during alignment checks.
Suxing Sleeve Swivel Clamp Chuck For Magnetic Stand 10 mm
This clamp chuck variant mirrors the 8 mm version but with a 10 mm hole size, expanding compatibility with additional magnetic stand configurations. It shares the lever clip and fixed bracket design, enabling secure, adjustable positioning for dial indicators in varied setups.
Accusize Universal Indicator Holder
This universal holder from Accusize is designed for dial indicators with a broad reach and clamping range. It specifies a 1-7/8″ clamping diameter, a 4-1/2″ arm length, and up to 12″ diameter reach, enabling versatile measurement setups. It supports indicators with a 5/32″ shank or dovetail, delivering broad compatibility for shop and field work.
Buying Guide: Key Purchase Considerations
- Compatibility: Check dovetail sizes, post lengths (5″, 7-7/16″, 9″), and clamping diameters to ensure it fits your indicator, stand, and shaft diameter.
- Material and Durability: Look for anodized aluminum, stainless steel components, and precision jeweled movement for longevity in industrial environments.
- Ease of Use: Favor kits with quick setup, intuitive positioning, and clear dials or readable displays to minimize setup time.
- Range and Versatility: Consider whether you need multiple posts, extension plates, and snug pieces for a wider variety of shafts and machines.
- Accessories and Case: A protective case and included posts or extension plates help keep components organized and protected in the field.
- Accuracy and Repeatability: Prioritize gear-driven or precision movement with low backlash for consistent measurements across tasks.
- Installation Environment: For mobile work, choose lighter, compact sets; for fixed workshop use, heavier-duty clamps may be preferable.
