Best Adjustable Angle Plate for Milling Machines for Precision Machining
When selecting an adjustable angle plate for milling, users seek precision, durability, and versatile clamping options. This guide highlights five top choices from reputable brands, designed to improve setup accuracy, reduce fixture time, and support a variety of milling and grinding tasks. Each item offers adjustable angles, robust construction, and practical features like T-slots or clear dials for precise positioning. Use the buying guide at the end to compare capabilities and choose the model that best fits your workshop needs.
| Product | Brand | Angle Range | Key Feature |
|---|---|---|---|
| BestEquip Tilting Milling Table 7x5inch | BestEquip | 0–90° | 3 T-slots, adjustable crank handle |
| BestEquip Tilting Milling Table 10x7inch | BestEquip | 0–80° | 3 T-slots, adjustable crank handle |
| HHIP 6″ x 5″ Slotted Angle Plate | HHIP | 0– | Webbed, clamping slots |
| RATTMMOTOR TAP-90 Tilting Angle Platform | RATTMMOTOR | 0–90° | Lightweight aluminum body |
| HHIP 4-1/2″ x 3-1/2″ Slotted Plate | HHIP | 0– | Webbed, precise slots |
BestEquip Tilting Milling Table 7x5inch
Heavy duty construction uses cast iron to withstand tough environments and resist corrosion, offering long service life. The 7×5 inch table includes three 12 mm T-slots for flexible tool placement and expanded processing space. An adjustable crank handle enables precise angle changes across the 0–90° range, with a clear dial to improve measurement accuracy. This model prioritizes rigidity and repeatable positioning for milling and grinding tasks that require angled setups.
BestEquip Tilting Milling Table 10x7inch
This larger 10×7 inch tilting table shares construction quality with the smaller model and adds extra space for complex setups. It features three 12 mm T-slots and a crank-adjustable angle range from 0–40 degrees with a clear dial for precision. The robust cast iron frame delivers stiffness and vibration resistance, supporting both milling and grinding operations that require stable angled fixtures.
HHIP 6″ x 5″ Slotted Angle Plate
HHIP’s slotted angle plate emphasizes precise clamping and layout capabilities with reliable machining accuracy. It is ground square and parallel on outside and ends, and it includes widely used clamping slots for securing workpieces during layout, machining, and inspection tasks. This plate is designed for repeatable results in setups that demand consistent orientation and alignment.

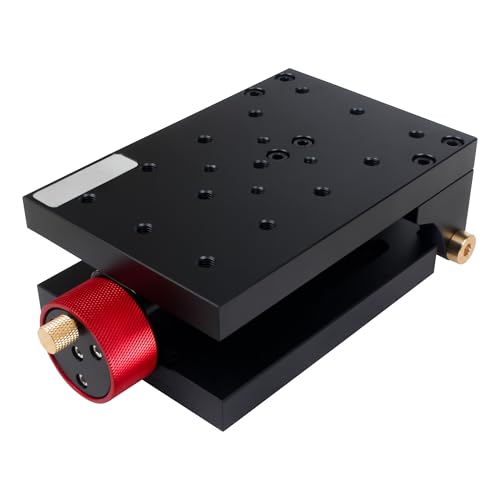

RATTMMOTOR TAP-90 Tilting Angle Platform
Constructed from aluminum alloy, this tilting angle platform delivers a lighter weight solution without compromising rigidity. It supports a full 0–90° range and is compatible with both lathe and CNC setups, allowing for flexible layouts. The sandblasted and oxidized finish provides improved wear resistance and a clean, durable surface for repeated use.
HHIP Slotted Angle Plate 4-1/2″ x 3-1/2″
This compact, webbed angle plate offers reliable clamping slots and precise geometry for small-work fixtures. The compact footprint is ideal for tight shop spaces, while the accurate outside and end squareness supports precise layout, drilling, and finishing tasks in milling or inspection setups.
Buying Guide
Key considerations when choosing an adjustable angle plate for milling machines:
- Angle range and adjustment mechanism: Look for clear, readable dials and smooth cranking for repeatable angles. Some models offer 0–90° convex ranges, others 0–80° or 0–40°. Decide based on your typical operations.
- Material and construction: Cast iron provides stiffness and vibration damping, while aluminum offers lighter weight at the expense of maximum rigidity. Choose according to workload, rigidity needs, and portability.
- Table size and T-slot configuration: Larger tables with multiple T-slots enable more versatile fixturing. Ensure the slots align with your tooling sizes and workpieces.
- Surface finish and accuracy: Look for ground accuracy and square ends to ensure consistent perpendicular setups, especially for precision milling and layout work.
- Additional accessories: Some sets include tailstocks, additional jaws, or interchangeable plates. Consider what comes included and what you might need to add later.
- Compatibility with existing equipment: Confirm bolt patterns, mounting holes, and overall footprint fit your milling machine or workbench configuration.
- Weight and portability: If you frequently move fixtures between machines, weigh the benefits of a lighter aluminum design versus a heavier, more rigid cast iron model.
Across these options, a balance between rigidity, adjustability, and clamping versatility will typically yield the best long-term value for precision milling and angled work. Consider your most common tasks—whether large-format milling, small precise drilling, or versatile grinding—and choose a plate that aligns with those workflows.
